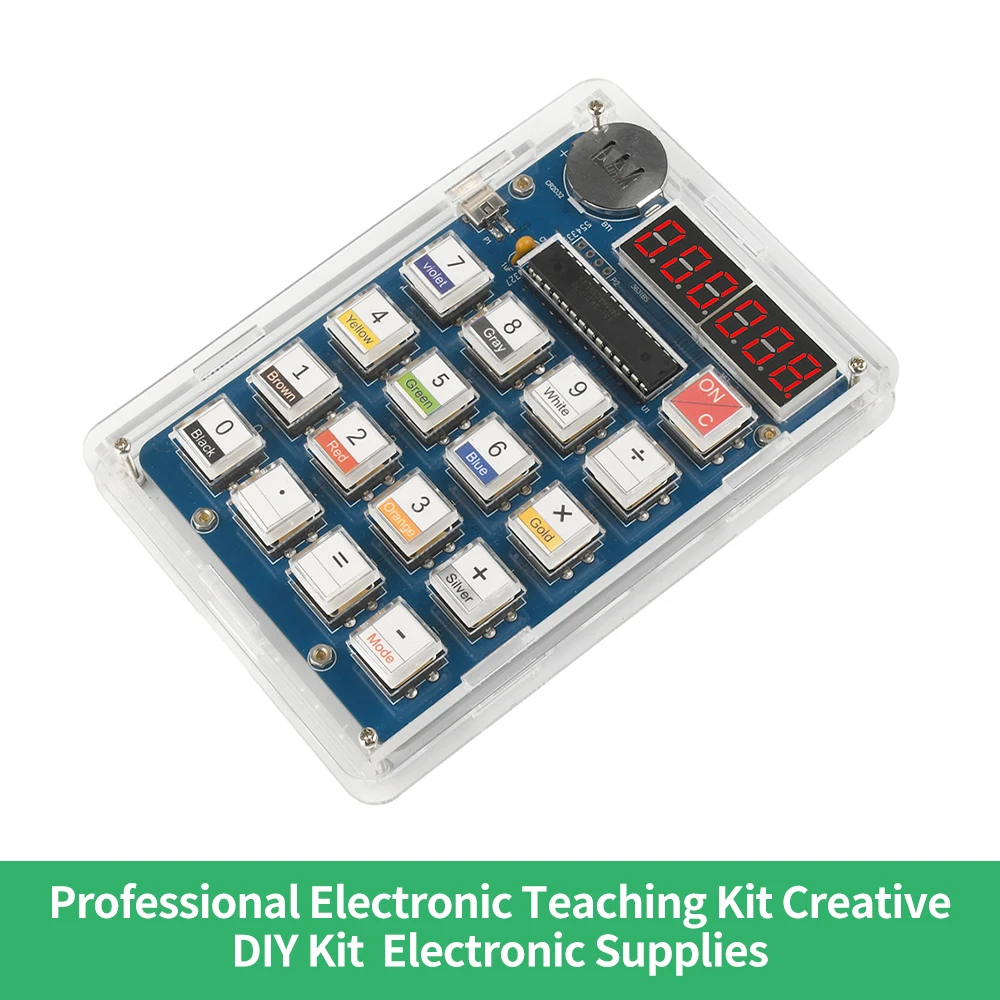

6-Digit Calculator DIY Soldering Kit for Microcontroller Education and Electronics Development

Product Overview:
The 6-Digit Calculator DIY Soldering Kit is an exceptional educational tool designed for individuals interested in microcontroller training and electronics development. This kit provides a hands-on experience, allowing users to construct a fully operational calculator capable of executing fundamental arithmetic operations and resistance value conversions. With its clearly labeled PCB and straightforward assembly instructions, this kit is suitable for both beginners and experienced electronics enthusiasts, making it a valuable resource for educational settings and personal projects alike.

Usage and Features:
This versatile calculator can be powered using a 3V button battery or a 5V USB connection, offering flexibility for various applications. Once assembled, users can effortlessly switch between different modes, including basic calculations and resistance value conversions, enhancing their understanding of electronic components. The elegant transparent acrylic casing not only showcases the intricate internal circuitry but also adds a modern touch to any workspace. Additionally, the energy-efficient automatic hibernation feature helps conserve battery life by putting the device into sleep mode during periods of inactivity.

Key Features:

• Dual power supply options: Compatible with both a 3V button battery and a 5V USB interface.

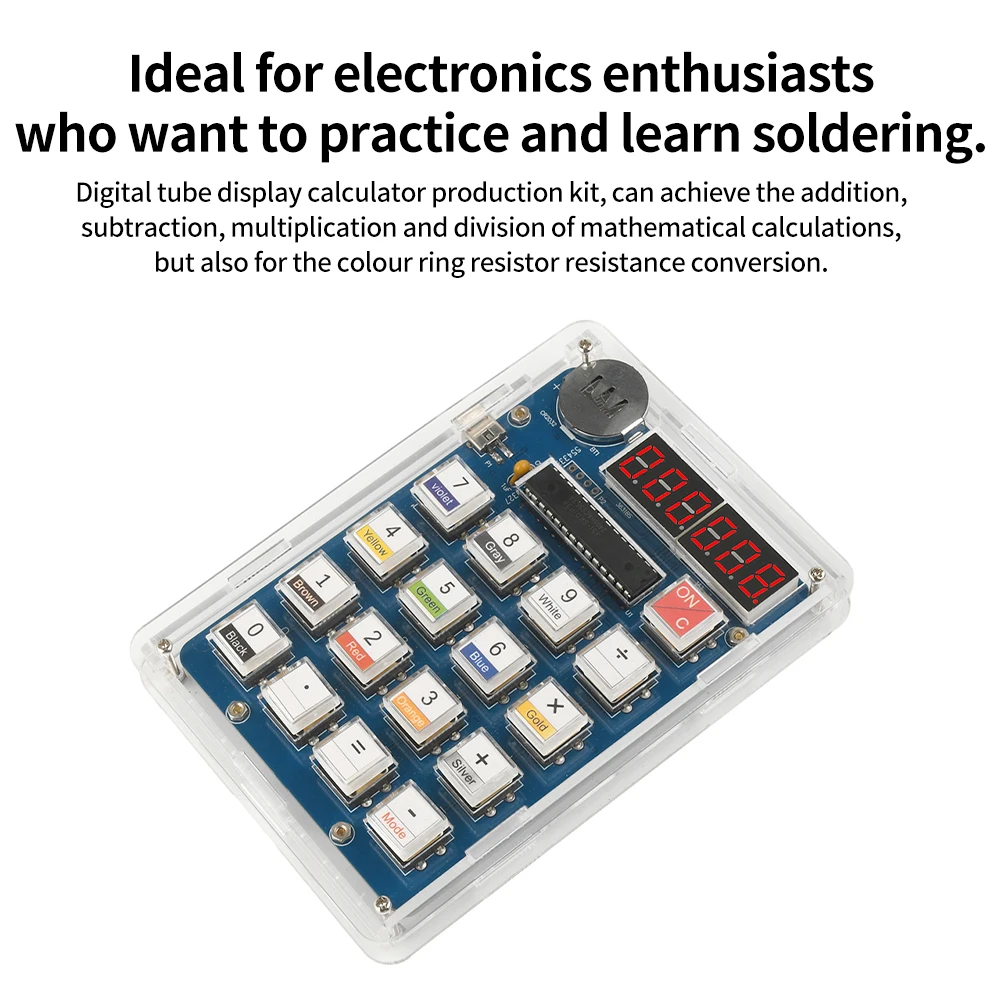

• Comprehensive functionality: Supports basic arithmetic calculations and color ring resistance value conversions.

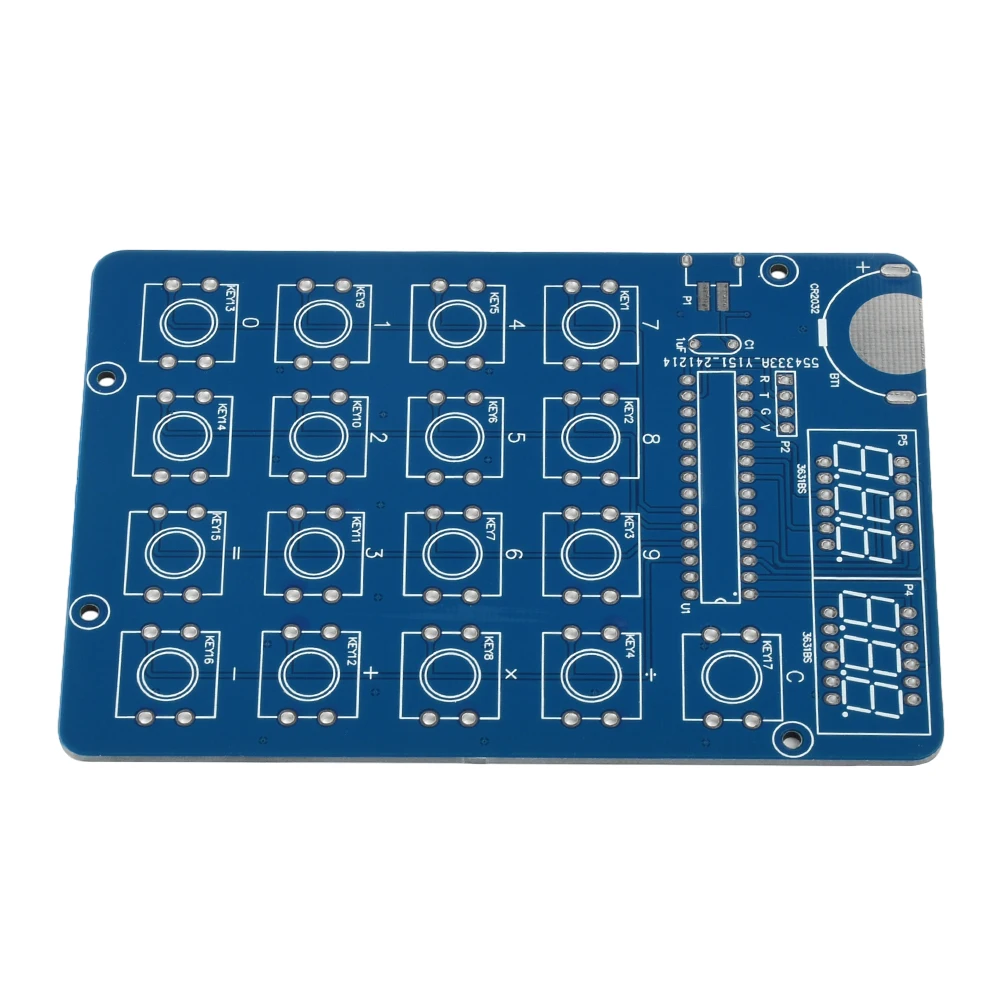

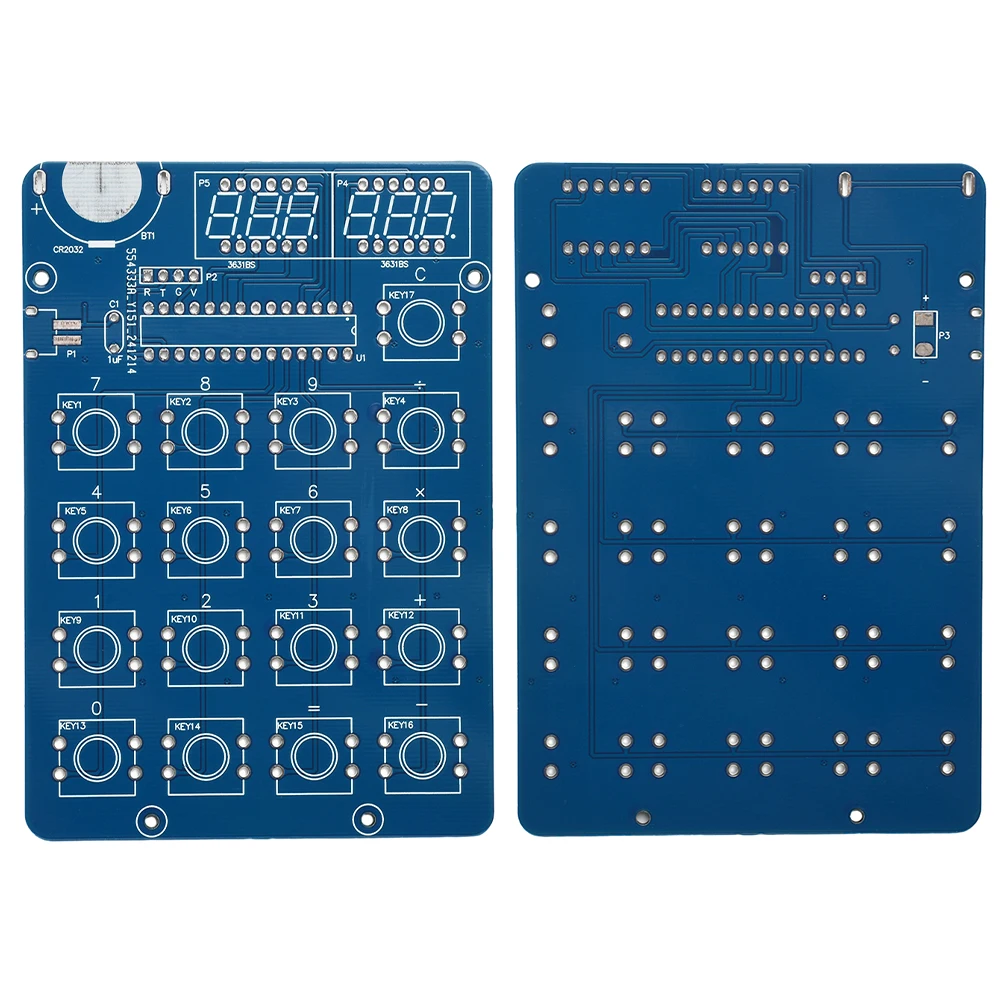

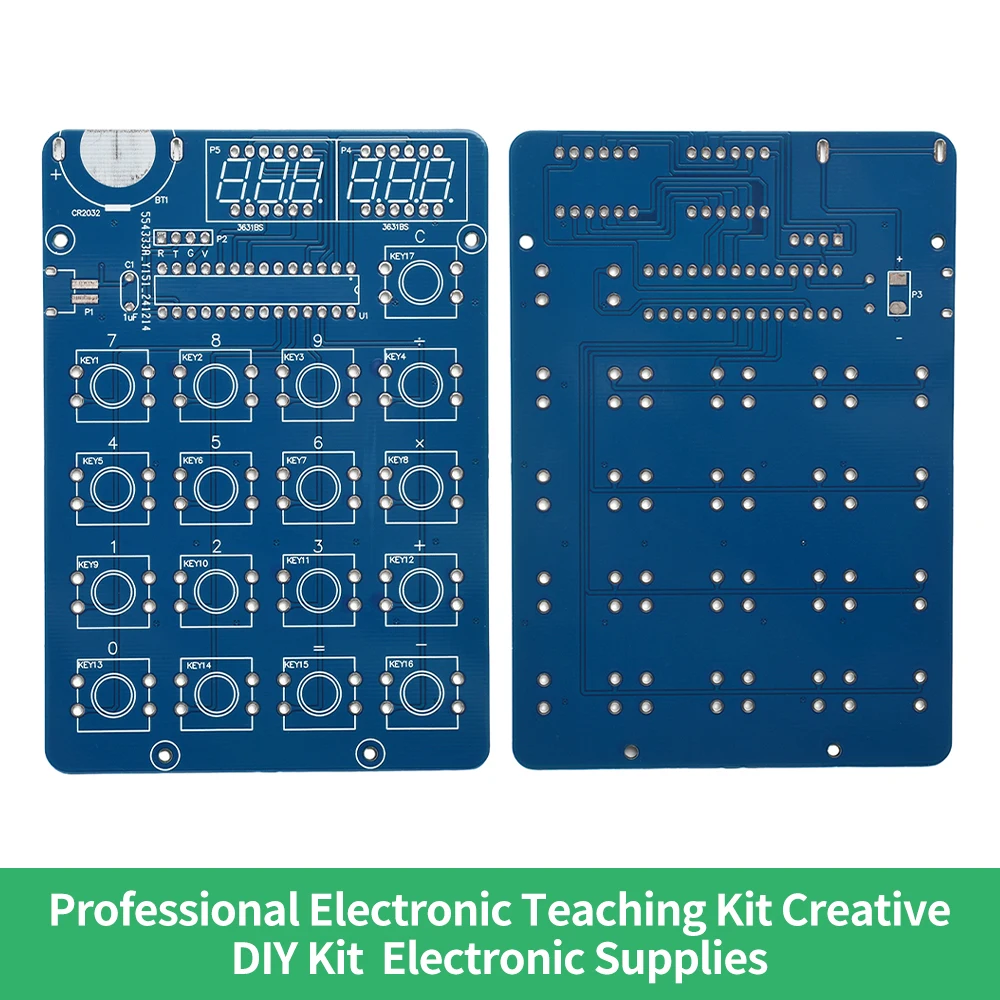

• User-friendly assembly: Clearly marked PCB allows for easy assembly in just 1-2 hours, perfect for beginners.

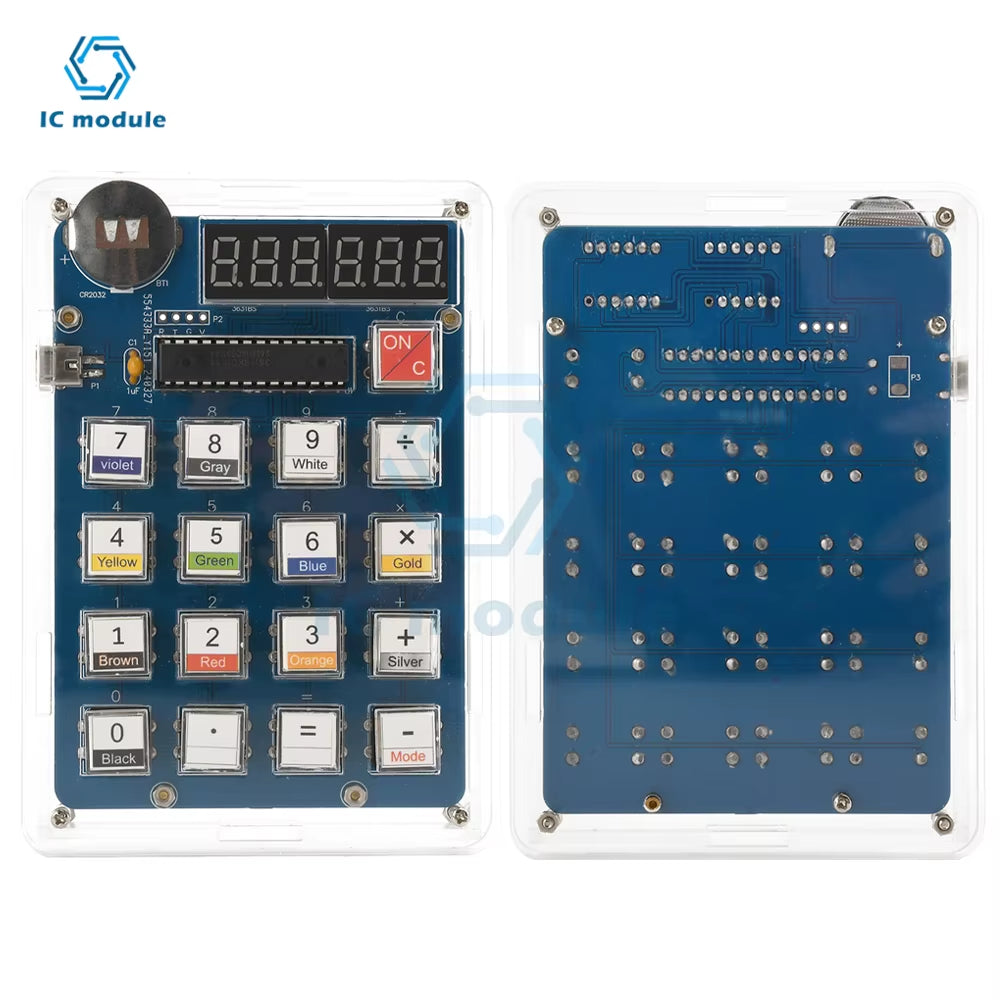

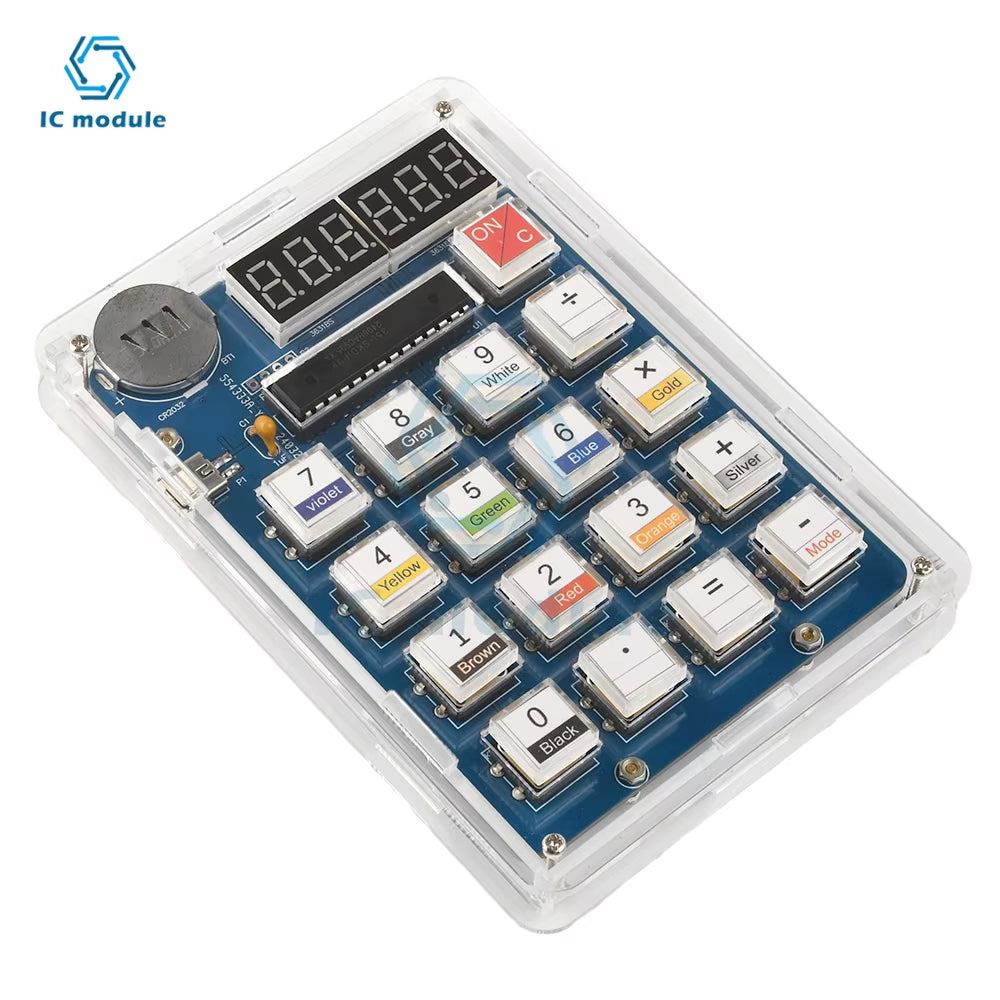

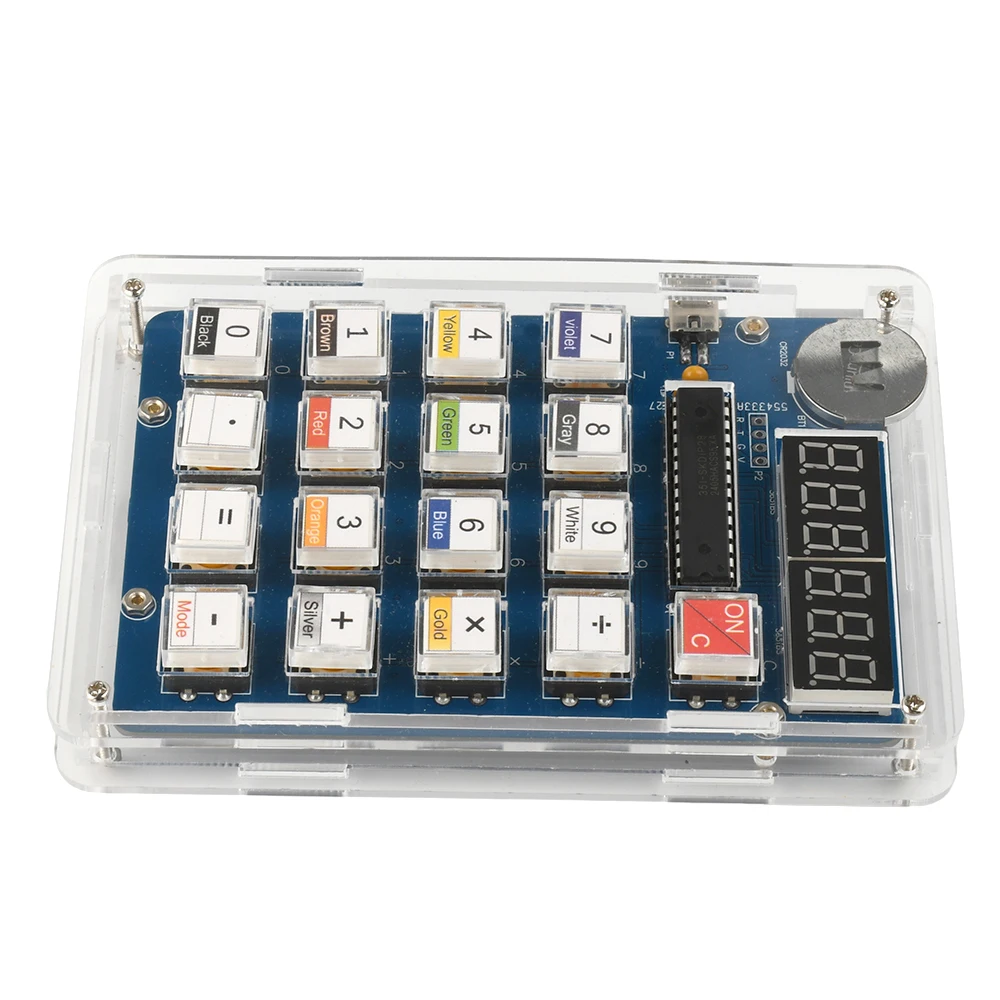

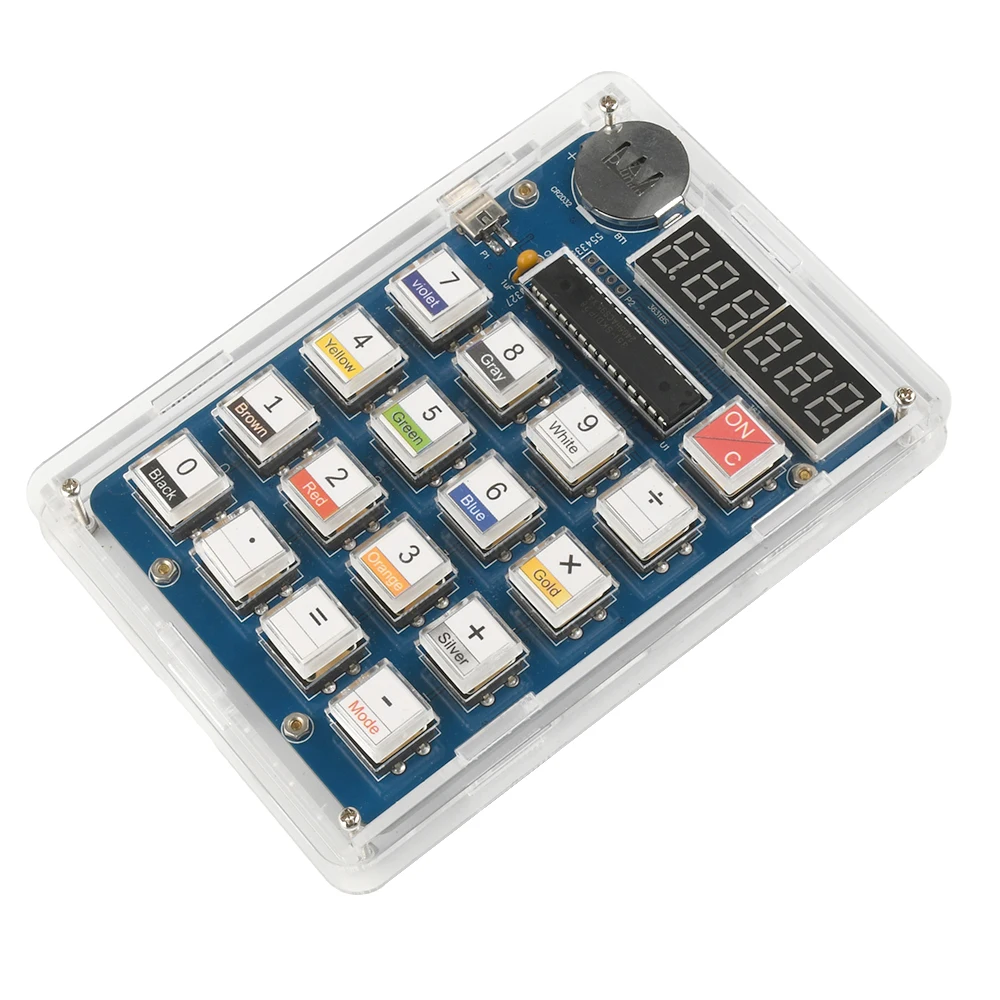

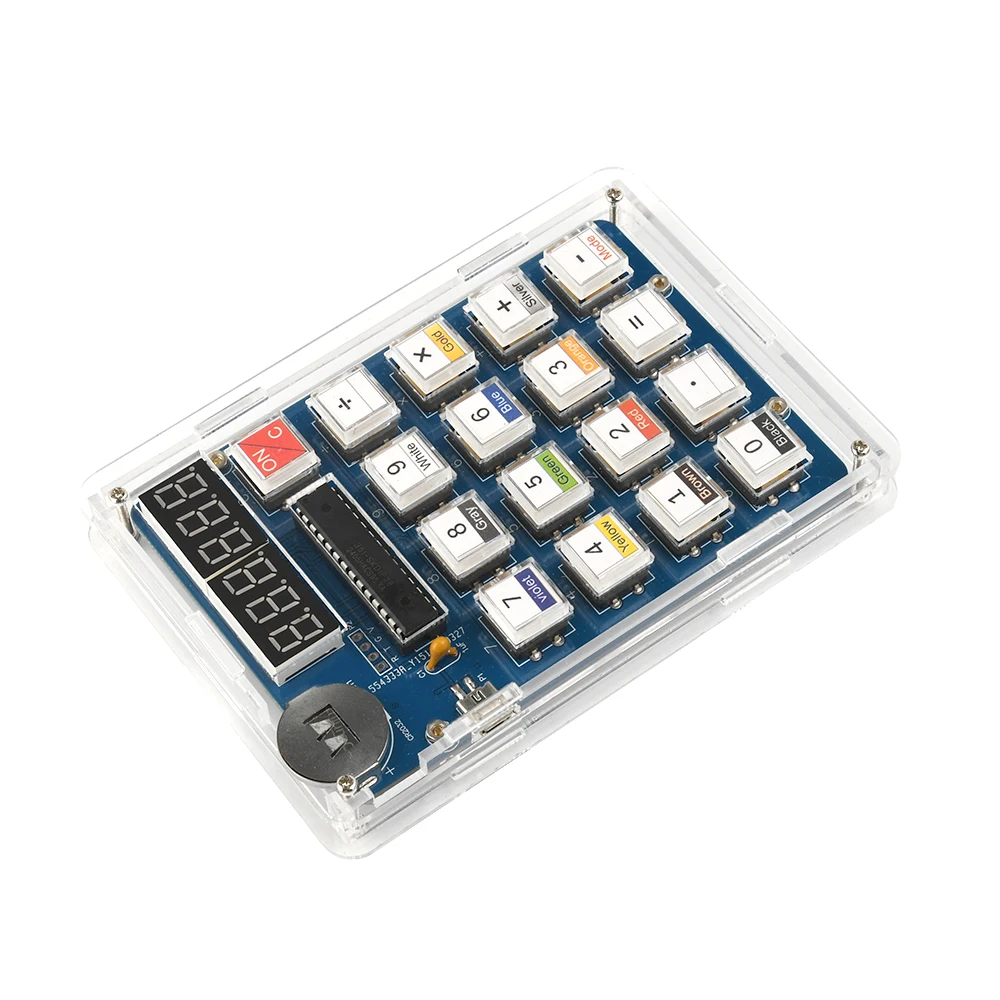

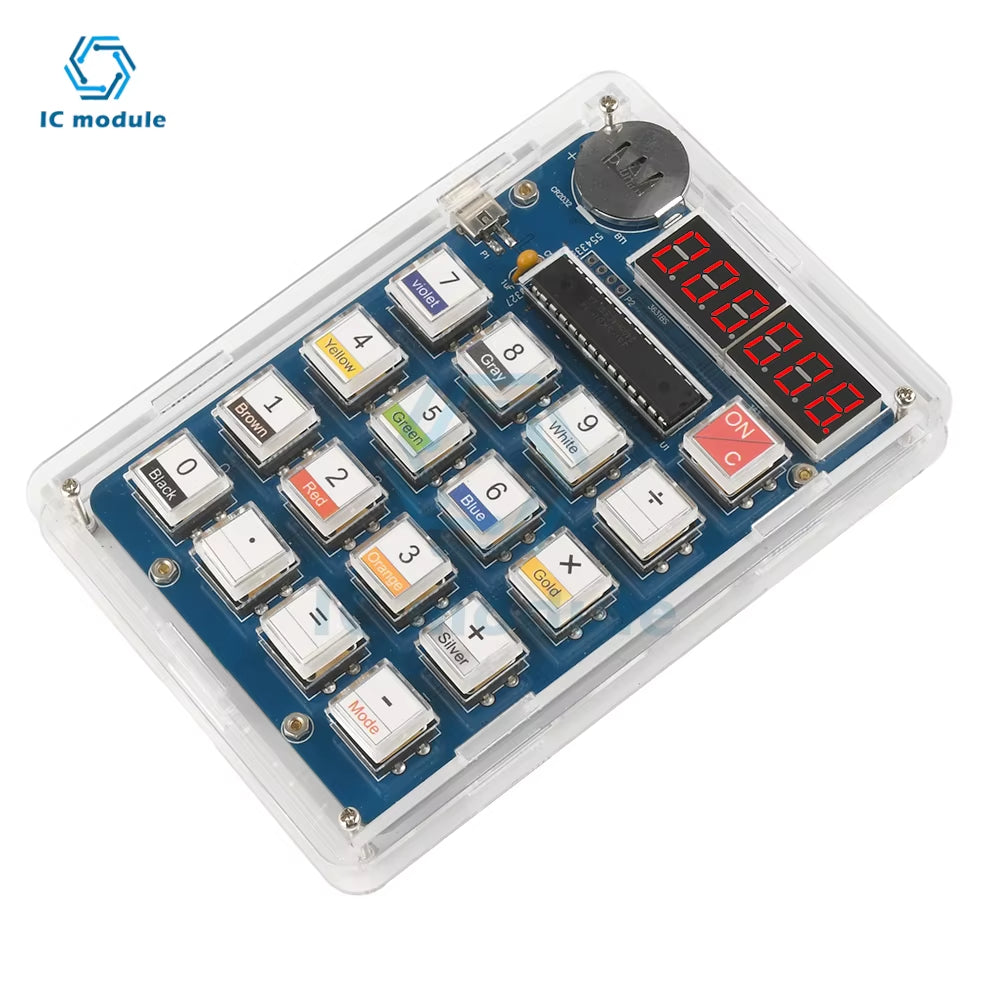

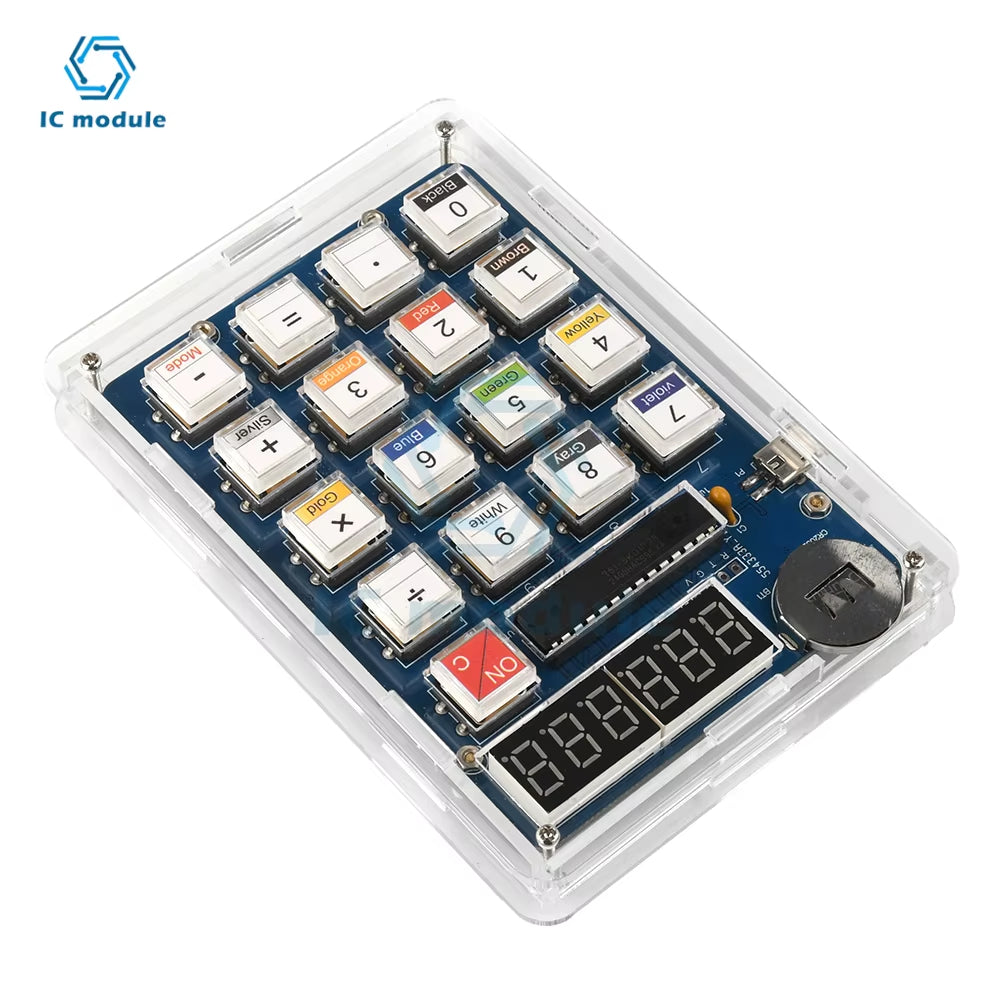

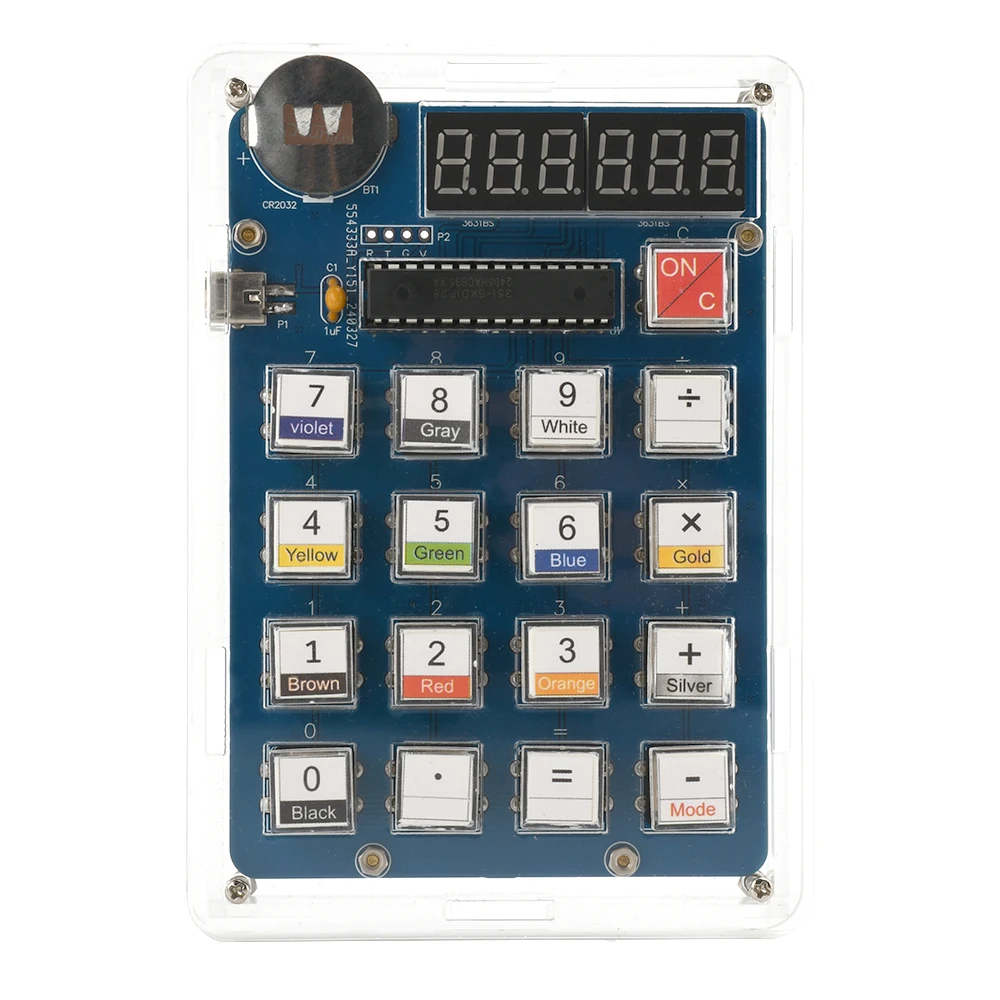

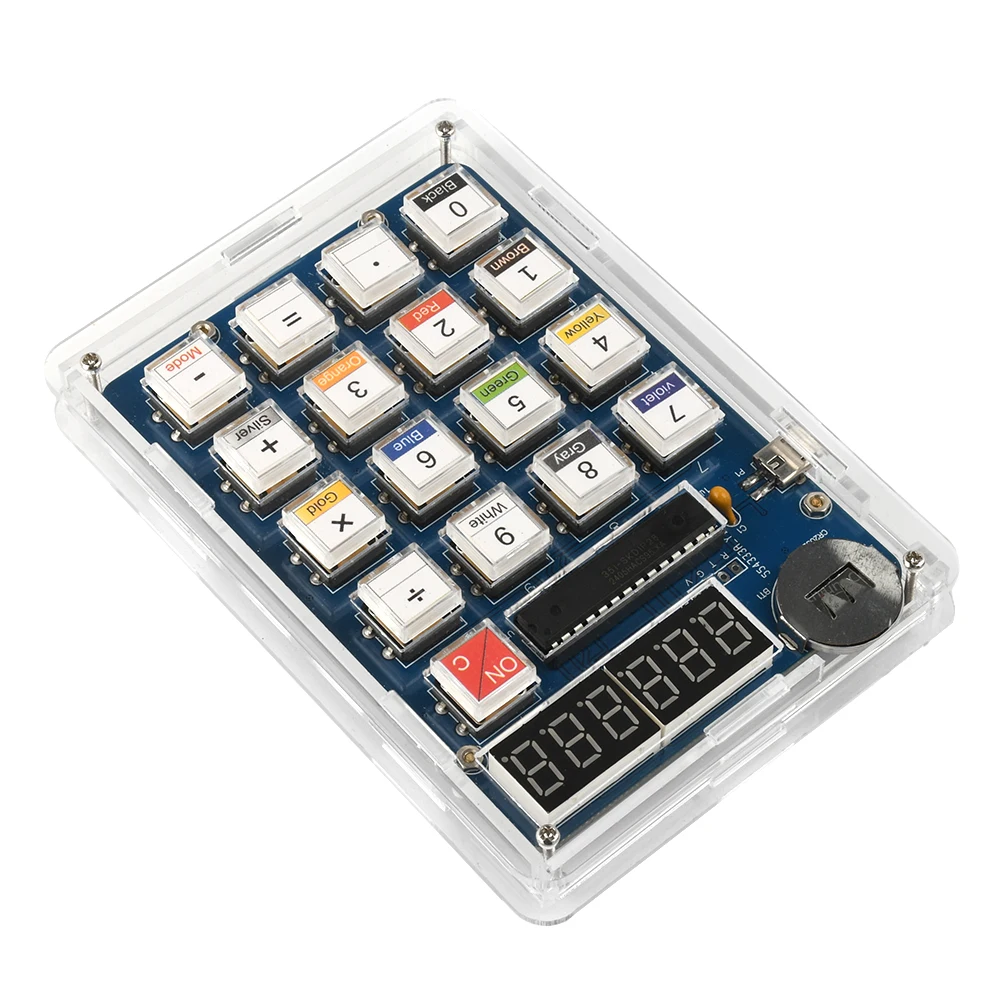

• Stylish design: Features a transparent acrylic shell that enhances visual appeal while showcasing internal components.
• Energy-efficient: Incorporates an automatic hibernation mode to prolong battery life during inactivity.

Specifications:
Product name: calculator kit
Supply voltage: 3V button battery or USB interface 5V power supply

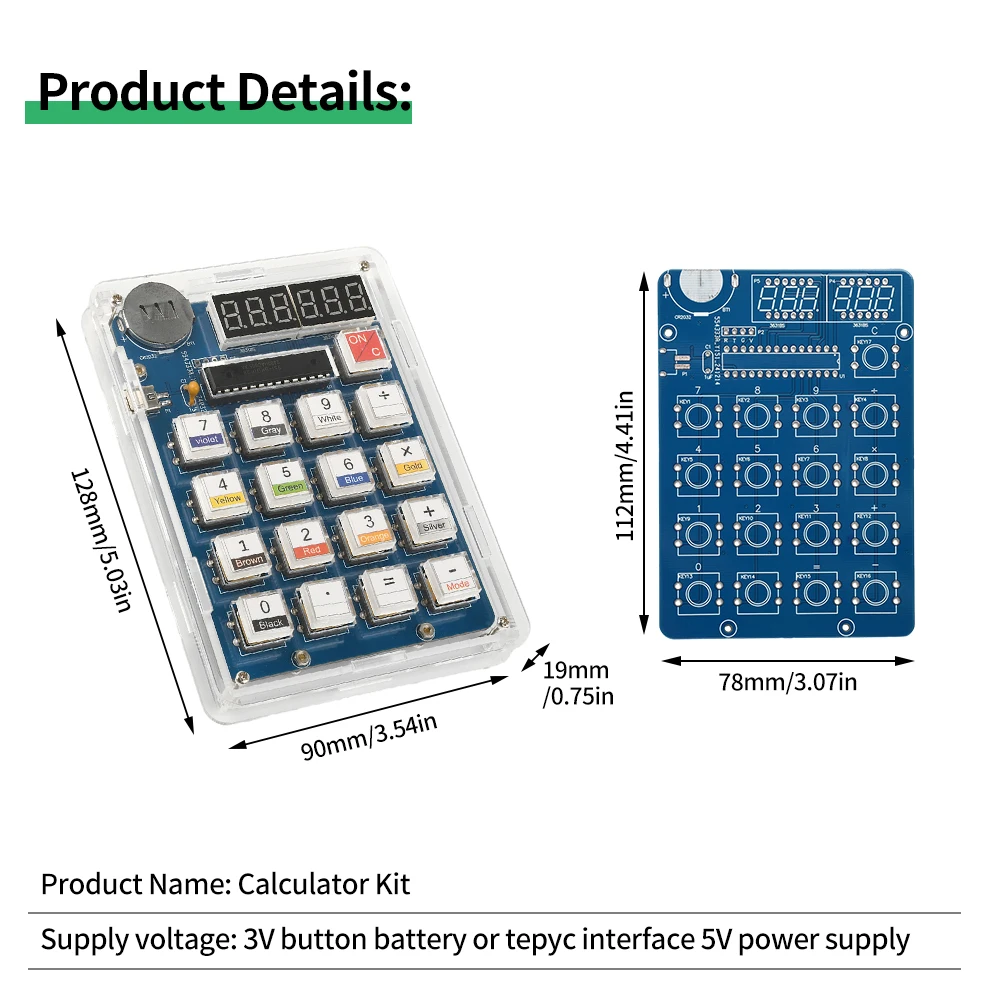

Product size: 85*119*19mm
Circuit size: 78*105mm

Instructions for Use:

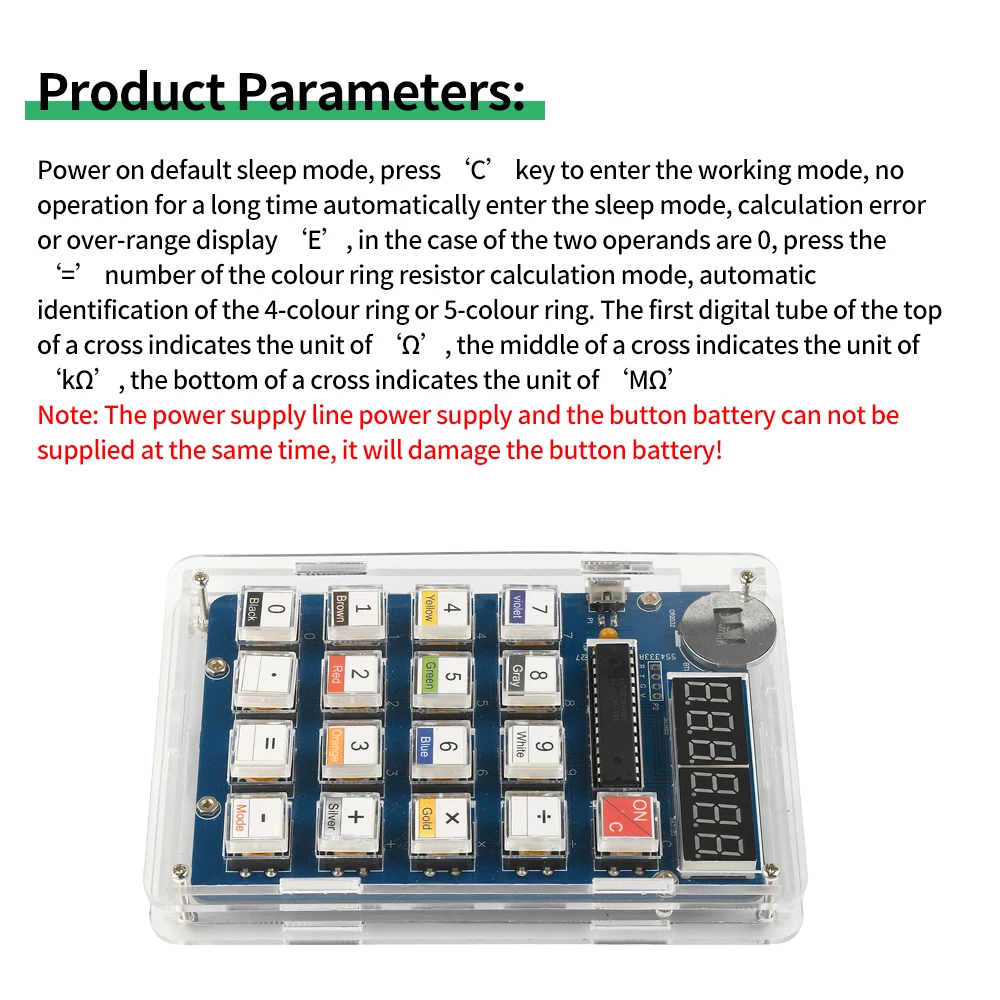

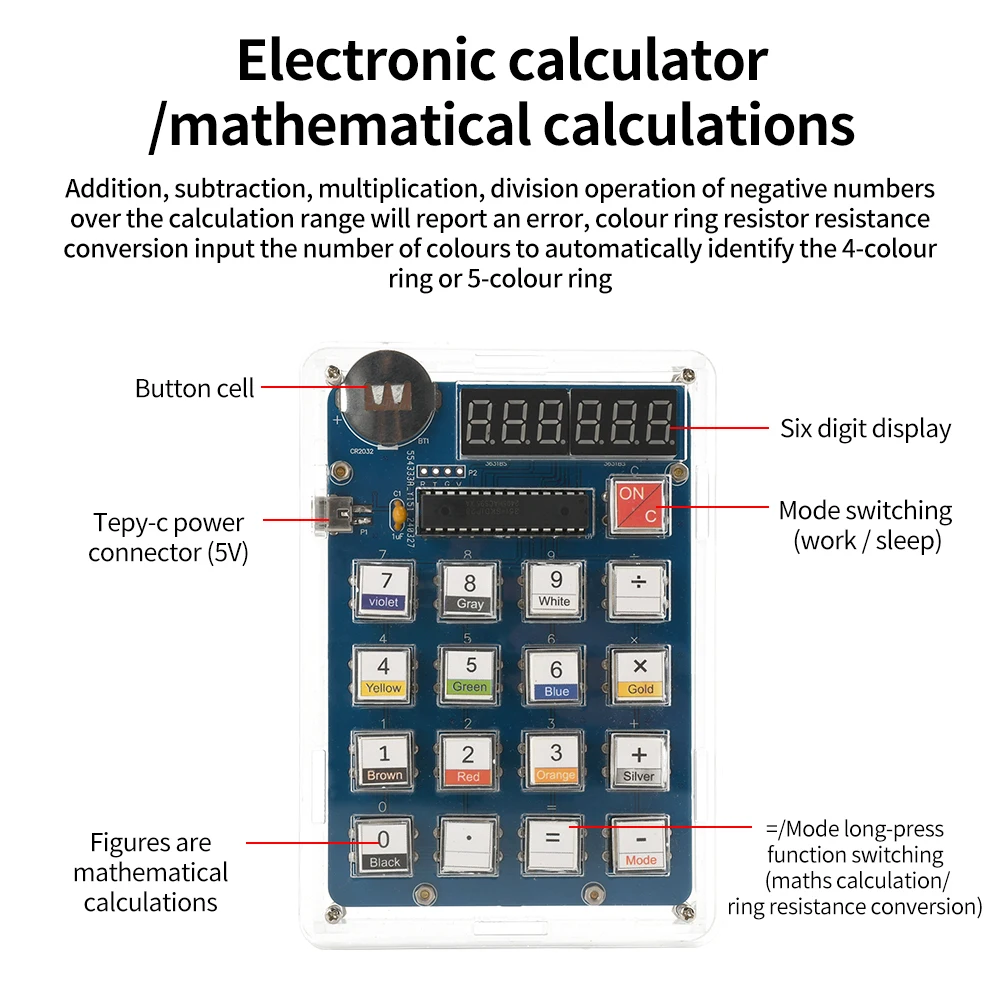

To power on, the calculator defaults to sleep mode. Press the “C” key to activate working mode. If no operation occurs for an extended period, the device will automatically enter sleep mode. In cases of calculation errors or display ranges, an “E” will appear. When both operands are zero, pressing “=” will initiate color ring resistance calculations, with automatic identification of 4-color or 5-color rings.
The upper horizontal digit indicates “Ω”, the middle indicates “kΩ”, and the lower indicates “MΩ”.

Important Notes:
1. Negative number calculations or exceeding the calculation range will result in an error. The color ring resistor conversion function will automatically recognize the number of colors inputted.
2. Do not connect both power sources simultaneously, as this may damage the button battery.

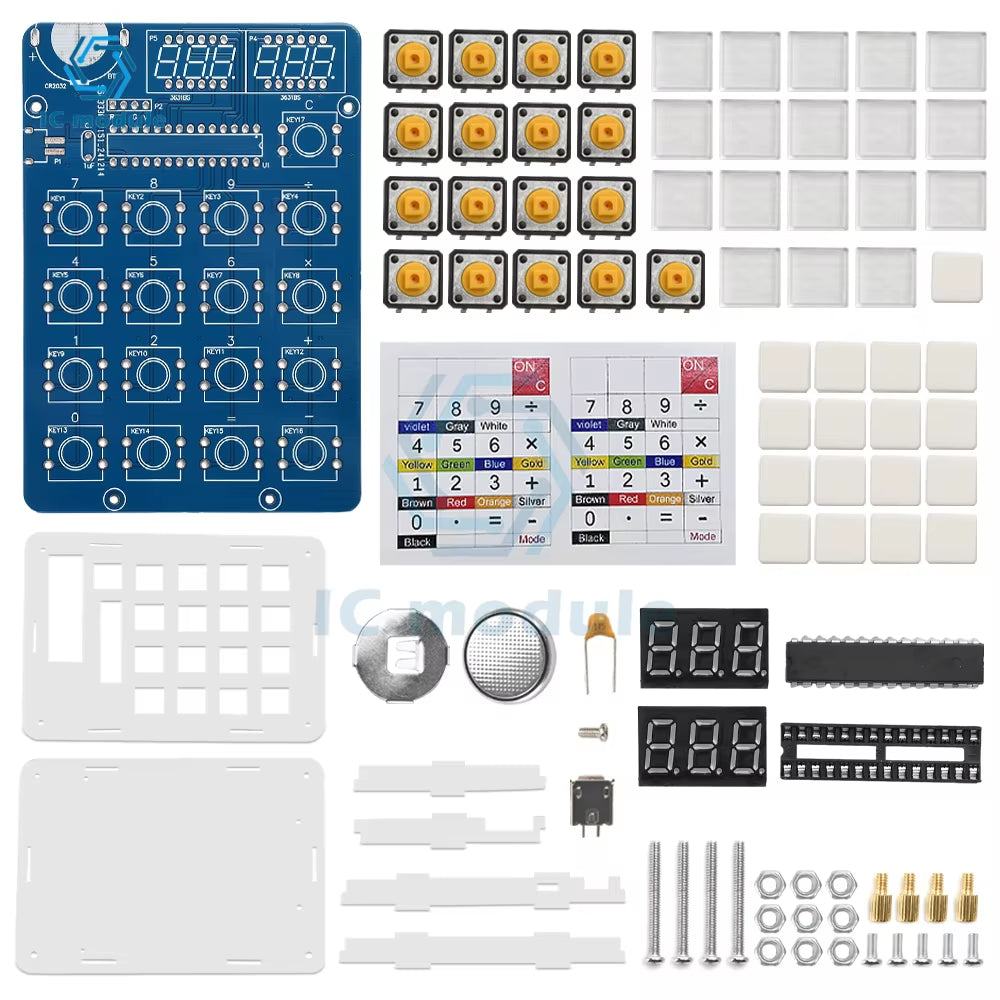

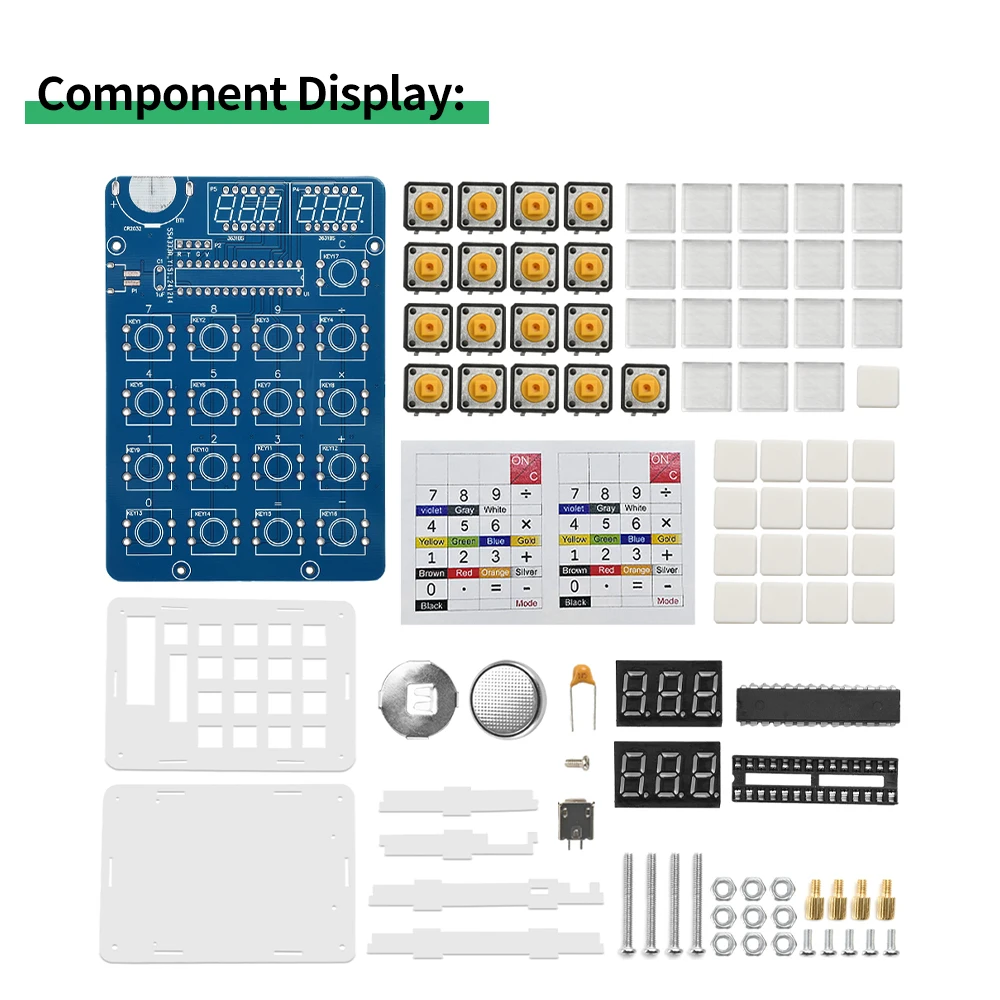

Package Includes:
Calculator kit x1
